Converting a String to Date/Time Data Type

This applies to: Managed Dashboards, Managed Reports

This article shows you how to change the data type of a column to Date/Time in an Excel or flat file data connector. With a date/time data type, you can use a time dimension, customize the format, and more.

Connect to a Flat File or Excel File

To import a flat file or an Excel file, follow the steps in Drag and Drop an Excel File. You can also choose to create a data connector yourself for an Excel file or flat file instead.

After creating the data connector, you can drag a sheet or table onto a metric set or dashboard to view it.

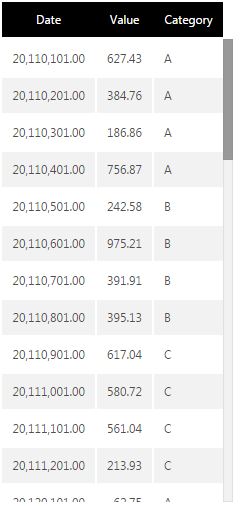

Before changing data type

In the example above, the date column was actually entered into Excel as a number containing a year, month, and day, so a column of numbers was imported into Symphony. It is also common for a column of dates to be entered as text in Excel and imported into Symphony as text (the String data type), which can't be reformatted or used with a time dimension.

Setting Up the Date/Time Data Type

As an alternative to converting the values into dates in Excel, the data connector allows you to customize the structure of the imported data including each column's data type.

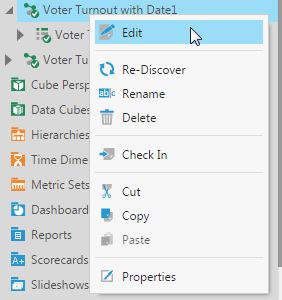

Right-click the data connector created for the Excel file and select Edit.

Edit the data connector

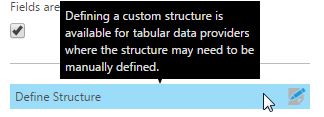

Select Define structure near the bottom of the dialog.

Define structure

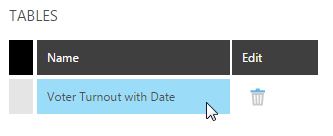

Select the table name or sheet with the column you want to edit.

Select a table

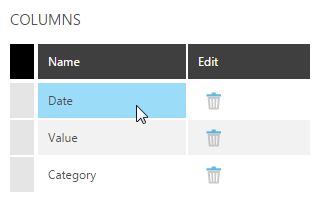

Select the column you want to edit. If the columns are not shown, select Re-discover table.

Select the column

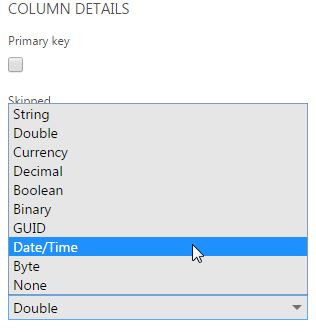

Under the selected column, set Data Type to Date/Time.

Data Type of column

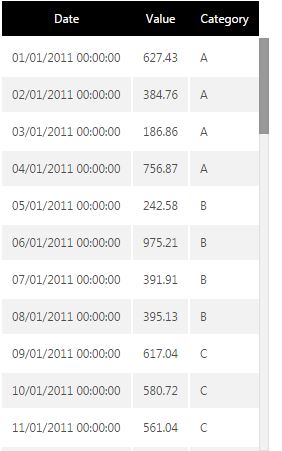

Once the data type has been selected, the Date Format field appears, where you can enter the format that matches the dates in your column so that each of its components (e.g., year, month, and day) are imported correctly. This format can be set the same way as formats elsewhere in Symphony, including time dimensions.

Enter the date format
