Using the Responsive Dashboard Layout

This applies to: Visual Data Discovery

Symphony's dashboard layout is responsive, building on a grid format that presents your dashboards to Users with Viewer access a flexible, mobile-friendly layout on a variety of screen sizes. Symphony rebuilds the dashboard layout on smaller screen sizes for any widget wider than 250 pixels. Preview the dashboard in View mode.

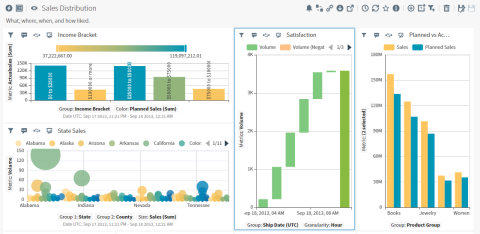

Edit mode:

make changes to your dashboard in edit mode

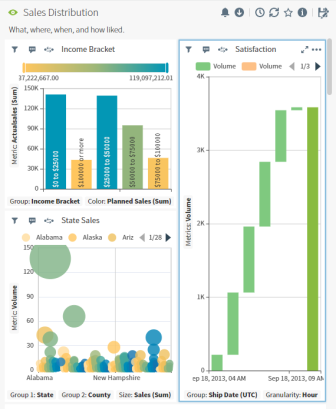

View mode:

view your responsive dashboard layout

When you add widgets in Edit mode, Symphony groups the widgets in rows and columns. These rows include up to four widgets side by side in a single row. When you add a fifth widget to a dashboard that includes four widgets in a row, Symphony starts a new row with the new widget.

If you move, resize, or reposition widgets, then add a new one, Symphony will add any new widgets to the first row that contains fewer than three widgets.

Manage Your Dashboard Layout

Select the Dashboard Layout icon () to open the Dashboard Layout work area. Here you can enable and disable locking mode, the responsive layout, and manage the minimum widget widths and heights.

Dashboard Layout Option	Description / Actions
Locking Mode	Enable and disable the toggle to control widget locking in this dashboard. See Lock and Unlock Widget Positions.
Responsive Layout	Enable and disable the toggle to control responsive layout for this dashboard.
Min widget width	By default, the width is 250 pixels. Set from 1 to 250 pixels. When the dashboard is in View mode, widgets are resized to no smaller than the defined size, based on browser window size.
Min widget height	By default, the height is 50 pixels. Set from 1 to 250 pixels. When the dashboard is in View mode, widgets are resized to no smaller than the defined size, based on browser window size.

Note: Use the property supressResponsiveLayout to control if the responsive layout is enabled or disabled. By default, this is set to false, enabling responsive layout. In embedded environments, set to true to suppress responsive layout.
