Use a Data Cube to Join Tables

This applies to: Managed Dashboards, Managed Reports

A data cube is a reusable multidimensional model of your data that consists of measures, hierarchies, and metadata such as formatting. Data cubes work primarily with non-OLAP sources such as relational databases, letting you view your data as a cube without having to use an OLAP system like analysis services. Use the information pulled together in these data cubes to build our your dashboards and reports.

• Use data cubes to integrate data from different sources, transform the data, and produce a reusable data model with optional data storage capabilities.

• Set up an ETL process when editing a data cube by choosing from our wide range of transforms and connecting them together to perform tasks such as data cleansing and combining data.

• The MDX Select transform lets you use an OLAP data source as input for selecting a tabular set of data to join with other data.

• Performance can be improved by using the optional storage types: warehouse to store the cube's output in Symphony, or in-memory for faster analytics.

• There is always a cube behind a visualization and its metric set, so a data cube may be auto-generated by Symphonyif you drag data directly from a data source so that you can start to work with it immediately.

• Once you create a new data cube, you can set up an ETL process consisting of transforms, use transforms to join database tables, and link the output columns of a data cube to existing hierarchies.

Note: You need to be a user with a Developer seat to create or edit a data cube.

Use the data cube work area to create your data cube structures visually. Add structures, create joins, and define your ETL process.

Create a New Data Cube

Select Data in the main menu, select Data Cube along the top, then Create. Choose the Blank option to drag and drop data sources as in this example.

Besides Blank, you can also choose to start with one of the listed input transform. You can always add a transform later from the toolbar.

The data cube work area is displayed.

Add a Database Table

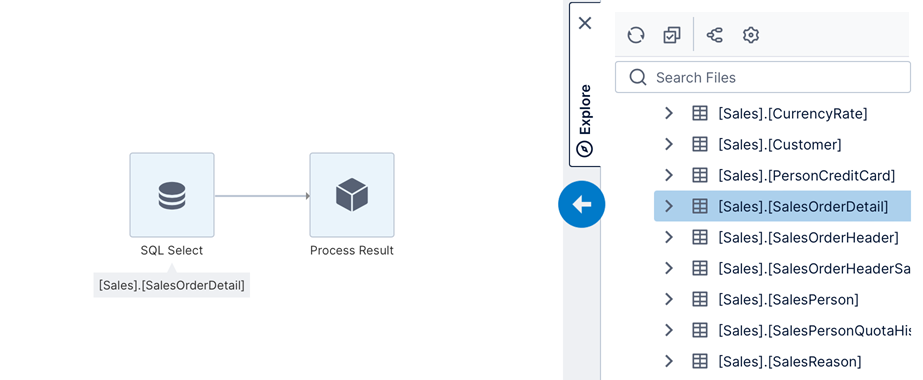

Next, locate your existing data connector in the Explore window and expand it to list its available data structures such as tables. We will drag the [Sales].[SalesOrderDetail] table to the canvas.

When you add the first data source, a simple ETL process is automatically created consisting of two transforms, with data flowing from left to right. A data cube name is automatically assigned and displayed in the status bar at the bottom, which you can double-click to rename.

The first node in the ETL process is a SQL Select transform, which represents a query to select data from the [Sales].[SalesOrderDetail] table.

The second node is a Process Result transform, which represents the output or result of the data cube (ETL process). This transform doesn't do any data processing but allows you to configure the way the data is made available to users accessing data from the cube.

An ETL process can have multiple inputs (for example, multiple Select transforms that query data from different databases) but always only a single output (the process result).

Add a Second Database Table

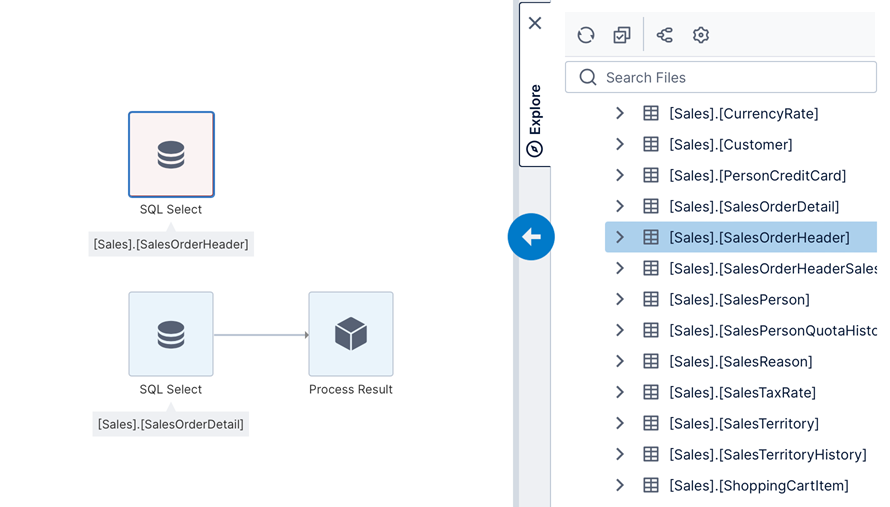

Add the second table [Sales].[SalesOrderHeader] to the canvas. The second SQL Select transform is displayed in red because it is not yet connected to the ETL process.

Insert a Join Transform Node

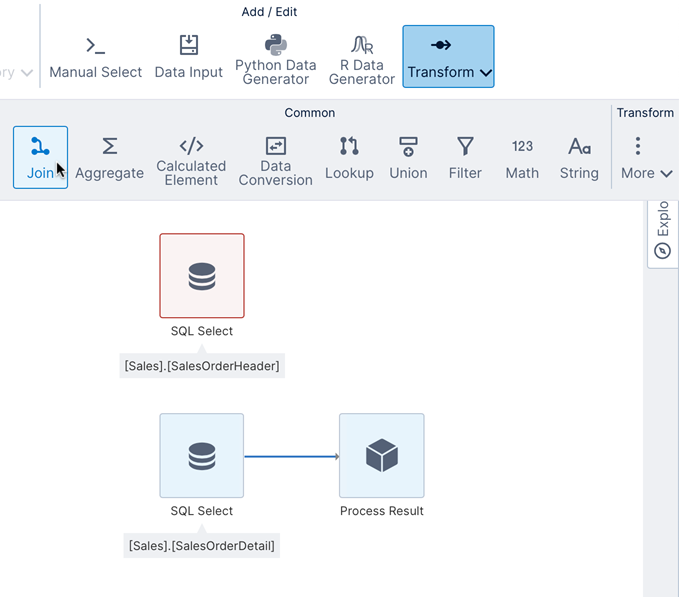

To insert a transform directly in a specific place, click to select a connection link such as the one connecting our first SQL Select transform and the Process Result transform.

From the toolbar, select Insert Common, then select Join for this example. In other scenarios, you may want to use other transforms such as Union or Fusing to combine data together.

Note: Most transformations are incorporated into a query to be executed by your database or other data source in order to optimize performance. Certain transforms such as Calculated Element can introduce icons with an exclamation mark in the top-left corner of the transform, indicating that data will be taken in-memory for processing at this point.

A Join transform is inserted into the ETL process where a connecting link was selected as shown next. If a connecting link was not selected, click and drag from another transform to the new transform to draw a connection between them.

The join transform needs two inputs, and is displayed in red until it has both required inputs connected.

Connect the Second Select Transform to the Join Transform

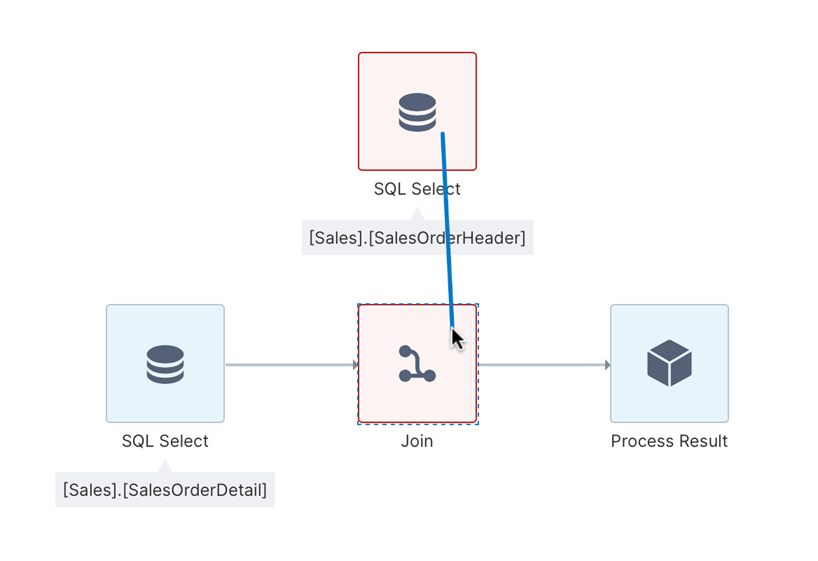

Select and drag a connection from the second input to the join transform.

Note: If you make a mistake connecting transforms, you can break a connection link by clicking the link and choosing Disconnect from the toolbar or from its right-click context menu.

Alternatively, you can hold the Ctrl or Shift keys while clicking to select the two transforms, and then choose Connect in the toolbar.

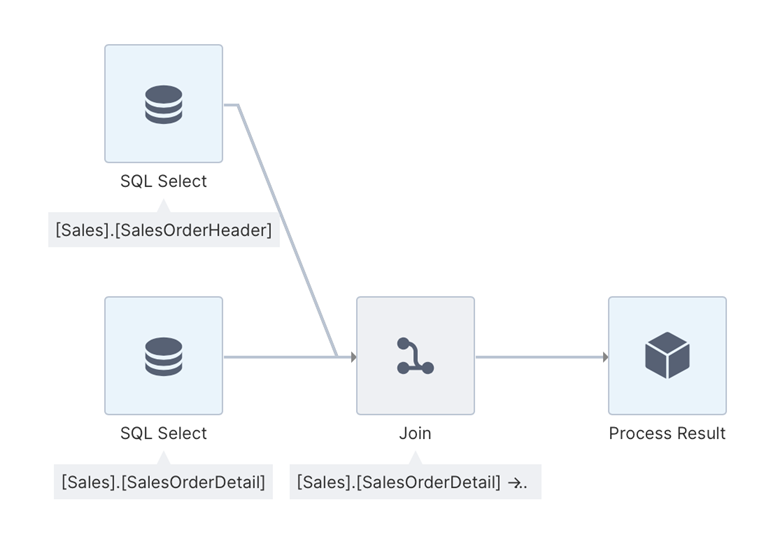

With both SQL Select transforms connected to the join transform as inputs, none of the transforms now appear in red.

Note: As a shortcut, you can simply drag a connecting line between the two transforms that you want to join instead of adding and connecting the join transform yourself. See .

You can insert a join transform and then click and drag to connect its inputs like in the first example, or as a shortcut simply click and drag a connection from one transform that you want to join to the other to automatically insert and connect a join transform.

Configure the Join Transform

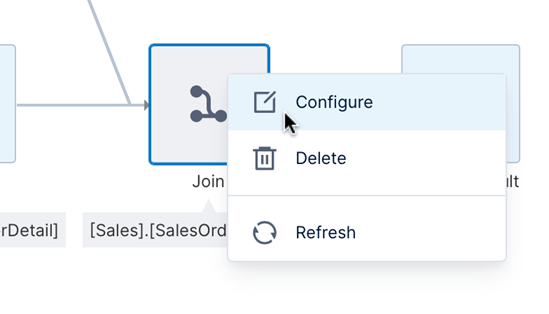

Once the join transform has been connected, you typically need to configure it. To configure any transform, select it and choose Configure in the toolbar or from its right-click context menu.

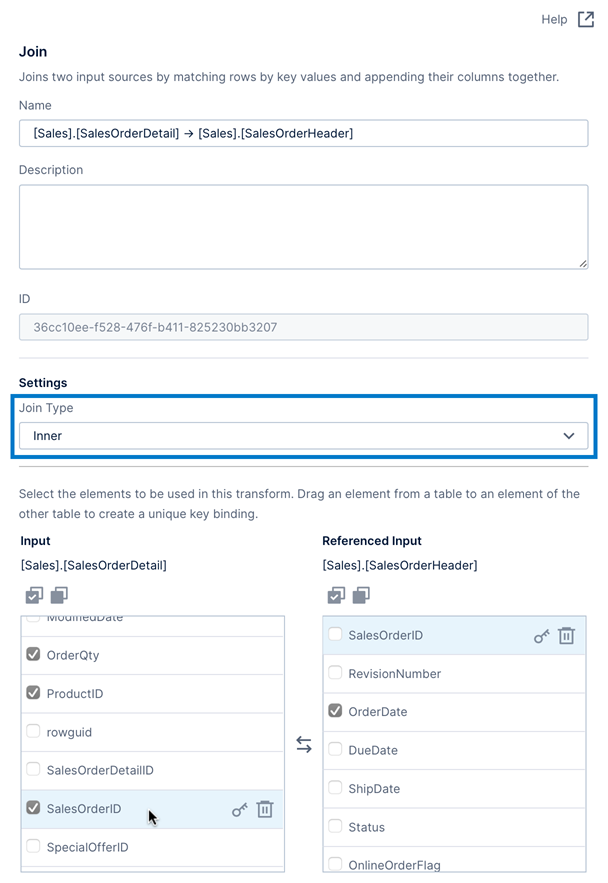

The Join configuration dialog is displayed.

Note: Hover over one of the columns with a key icon to highlight its match in the other list as shown above.

There are three main ways to configure a join:

1. Choose the Join Type (which can be Inner, Left, Right, or Full). This examples uses Inner because it assumes matching IDs exist in both tables.

2. Set up the unique key binding, which will be indicated by key icons next to columns containing matching values from each table. There may already be one added automatically like for SalesOrderID in our example based on relationships already defined in the database or by a user in the application. Otherwise, drag a column from one list and drop it over the matching column from the other list as shown later.

3. Use the checkboxes to select or de-select columns for inclusion in the output. For example, select OrderQty, ProductID, and SalesOrderID from the order details, and OrderDate and SalesPersonID from the order headers.

See the Join transform article for more details on these options.

Join With a Third Database Table

The ETL process so far joins two database tables. To add a third table, you will need to insert another join transform into the ETL process because each join accepts only two inputs.

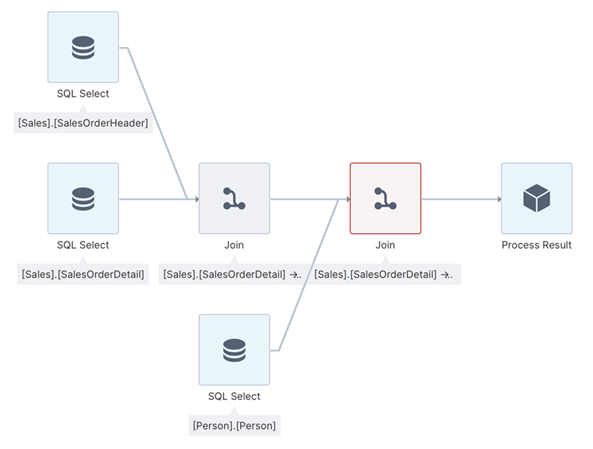

In the Explore window, locate the [Person].[Person] table and drag it to the canvas. The table appears as a third SQL Select transform, displayed in red because it is not connected to the ETL process yet.

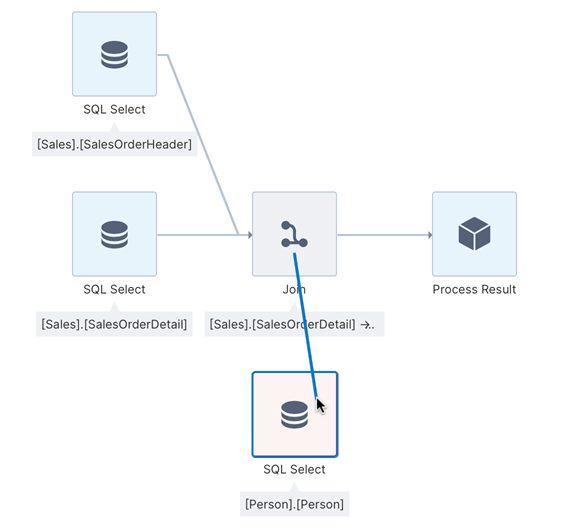

You can insert a join transform and then click and drag to connect its inputs like in the first example, or as a shortcut simply click and drag a connection from one transform that you want to join to the other to automatically insert and connect a join transform.

Configure the Second Join Transform

Once the second join transform is connected in this example, it must be configured. Select it and choose Configure from the toolbar or context menu.

For this example:

1. Choose Inner as the Join Type.

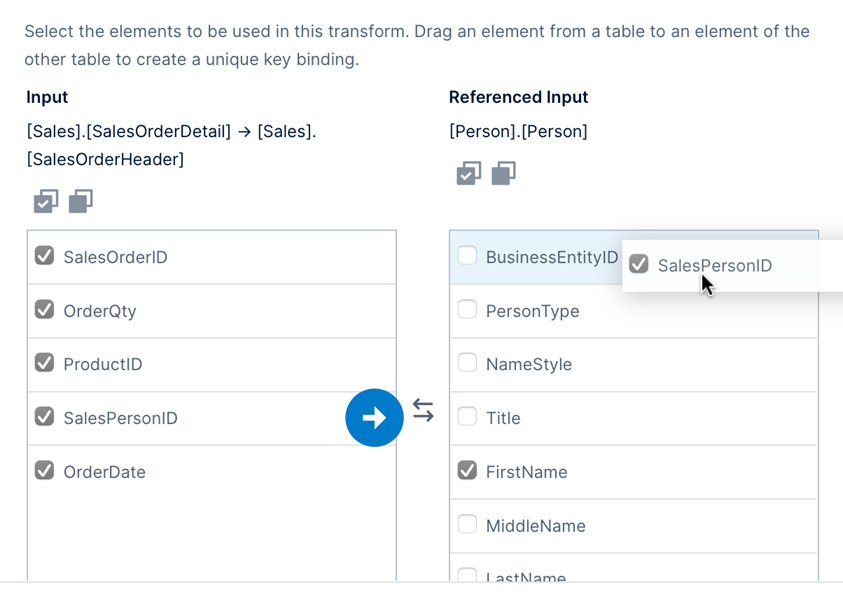

2. Add the unique key binding by dragging the SalesPersonID column from the sales order data and dropping it onto the BusinessEntityID column from the Person table, which in our example contains matching key values.

3. Finally, de-select all column checkboxes from the Person table except for FirstName to exclude the others from the output.

Configure the Process Result

The last step of the ETL process is the Process Result, where you can configure the final output of the data that users with read access will see when using it as a data source in metric sets.

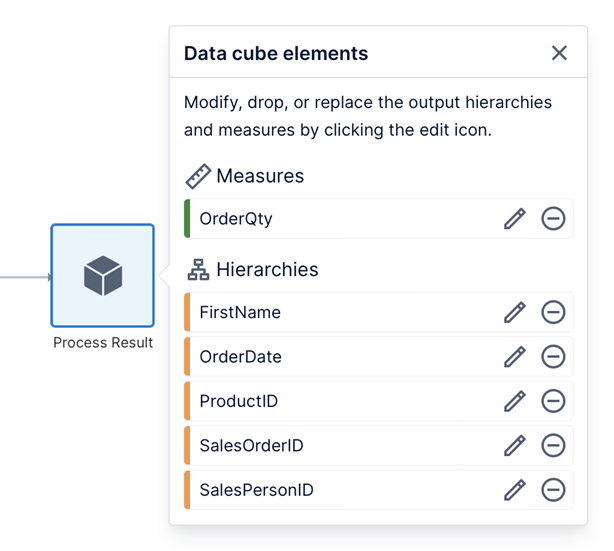

Click the Process Result transform to open the Data Cube Elements panel, which shows the list of measures (numeric) and hierarchies (usually non-numeric) output from this data cube. Click on an element or its pencil icon to edit its settings.

You can customize each element's name, description, predefined formatting, and more.

Any data not used as a measure becomes a hierarchy when output from the cube whether or not it was based on a hierarchy you defined ahead of time to contain multiple levels or other customizations. If not replaced with a predefined hierarchy, a column of data becomes an implicit hierarchy.

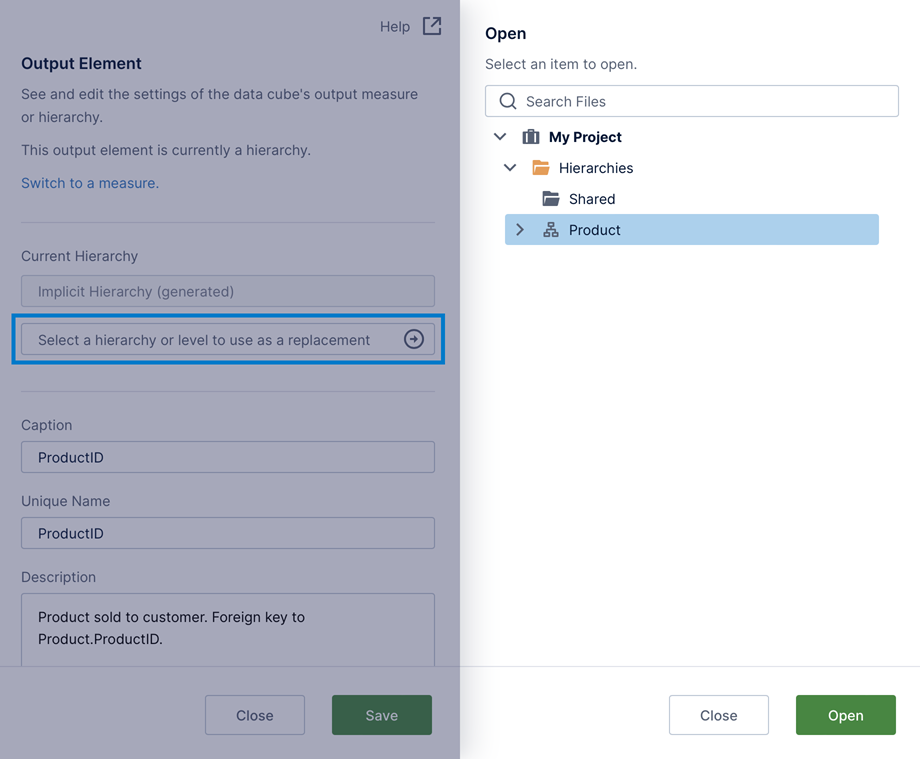

To replace an implicit hierarchy with your own that's based on matching key data, click Select a hierarchy or level to use as a replacement. In the Open dialog that appears, select the hierarchy, or expand it and select a particular level that matches the column's values. Click the Open button at the bottom to proceed.

The steps are the same to replace a DateTime type column (such as OrderDate in this example) with a hierarchy from the built-in time dimension or from one of your own, to group by and drill down between levels such as Year and Month.

For more details on these options, see Process Result.

Data Preview and Export

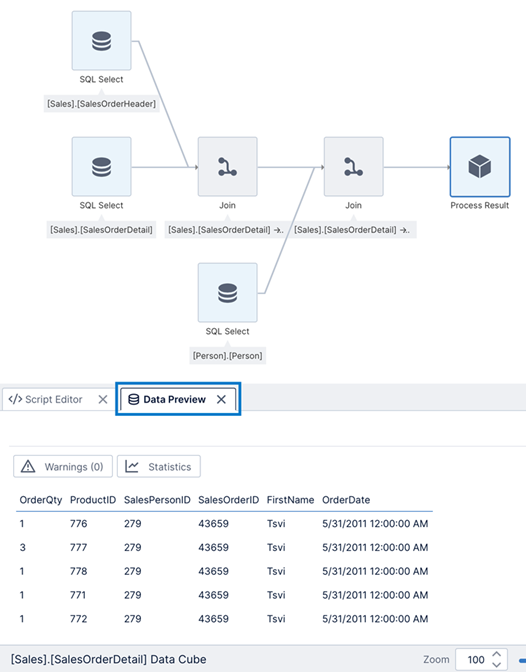

Open the Data Preview window to preview the data processed up to whichever transform is selected. With Process Result selected, this shows the data as output by the ETL process (before replacing the raw data with hierarchies).

The row above the table provides access to warnings and statistics about the data.

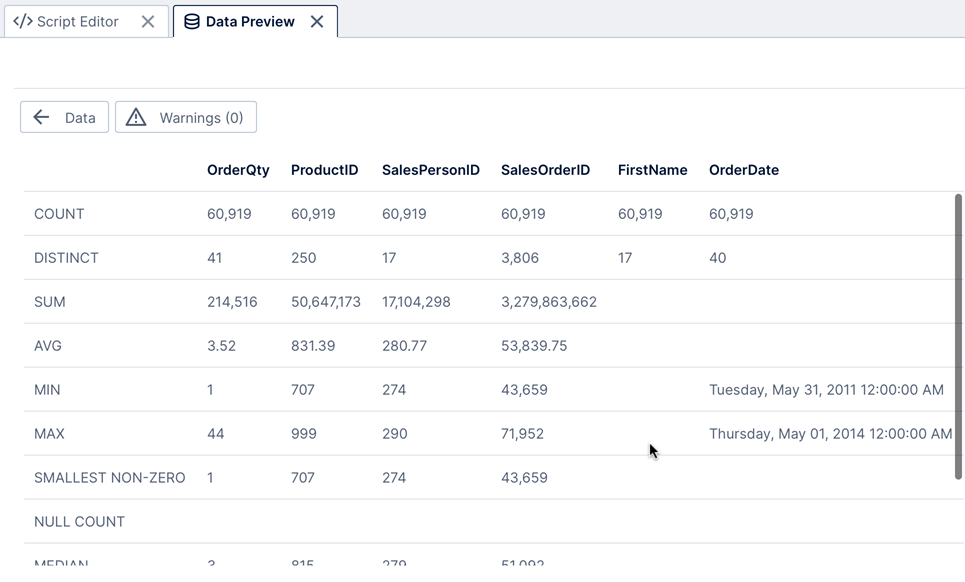

Select Statistics to view a summary of each column, such as the average, minimum & maximum, distinct count, and the number of null values (which can result in Unknown members when used in metric sets).

To export the data for further analysis or verification, select Share in the toolbar and then Excel.

Exporting data from a data cube is similar to exporting the data from a dashboard or other view: you can optionally switch the Format to CSV, then select Export. The downloaded file will contain the data output by whichever transform was selected, or the Process Result if none.

Check In

Check in your data cube from the toolbar so others can use it too. Everyone with access to the cube with a power user seat or higher can use its data to create metric sets.

Reusing in Other Data Cubes

You can reuse the process flow of a data cube in other data cubes to avoid setting up the same transforms multiple times, simply by dragging another data cube onto your canvas.

For details, see Data Cube Select.
