Manage All Symphony Licenses

Starting with the release of Symphony v25.1, you can easily add and manage all licenses in the Administration homepage. Navigate to the Licensing work area to add or edit new licenses as needed.

Access and manage previously installed licenses for individual modules using the directions outlined below.

Note: Obtain your license file or text from your Symphony account manager.

Visual Data Discovery Module

This applies to: Visual Data Discovery

Note: When a Symphony standard or trial license expires, only system administrators can log in (to update the license). Regular users are shown a message that the license has expired.

Note: Obtain your license file or text from your Symphony account manager.

Manage your license keys in one of three ways:

• Manage License Keys in the UI

• Manage License Keys Using the Licensing API

• Manage License Keys Using Configuration Properties or Environment Variables

Manage License Keys in the UI

This applies to: Visual Data Discovery

Apply a new license key:

1. In the environment for which you need a new license key, log in as a system administrator.

   Note: To log in after a trial license has expired, navigate to https://your-symphony-instance/discovery/login to log in as a system administrator and access the Visual Data Discovery UI.

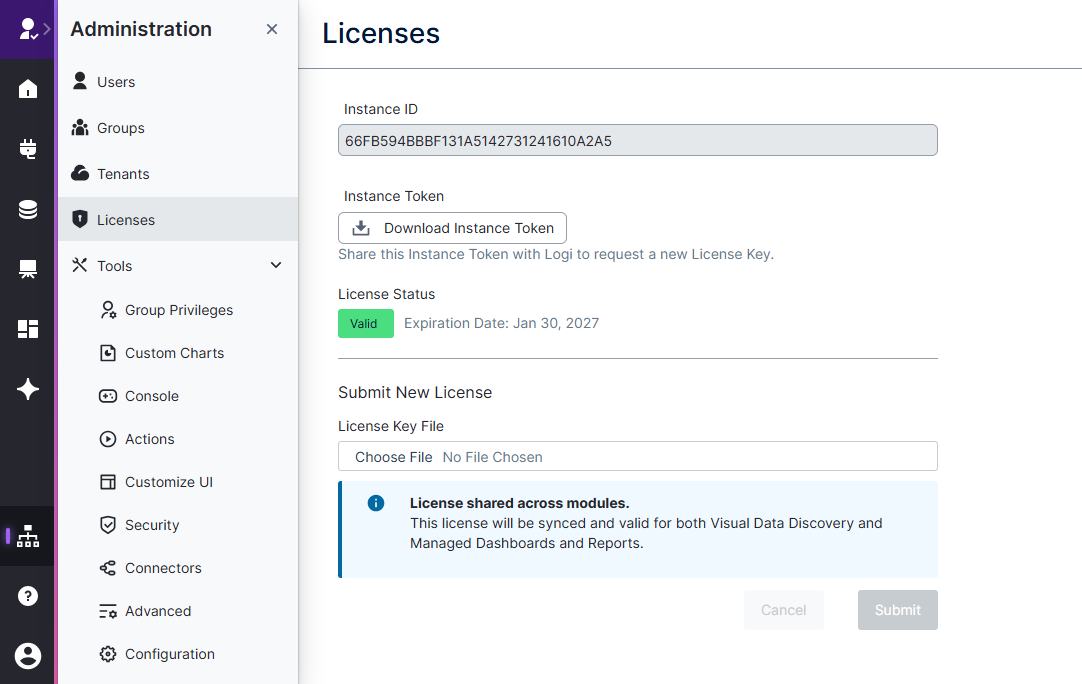

2. Select Licenses from the main menu to open a Licenses work area for all modules.

3. Select License details from the Actions menu for the license you want to apply an update for. A Licenses the Manage License work area appears for this license.

   Alternatively, select Tools > License from the main menu in Visual Data Discovery. The Manage License work area appears.



   This work area shows your current data discovery instance ID and its current expiration date.

   Note: If you select Download Current Key, your current license key is downloaded in a license.key file.

4. Select Download Instance Token. A .tok file is downloaded to your computer.

5. Log into DevNet and visit the License Management page to create a license file. You do this by assigning one of your license keys to a specific instance of Symphonydata discovery, by uploading the .tok file from the previous step. DevNet generates a license.key file, and downloads the file to your machine.

6. Browse to find the license key you just downloaded. Then, select Submit. Symphonydata discovery applies the new license to your instance.

Manage License Keys Using the Licensing API

This applies to: Visual Data Discovery

API documentation is provided with your Symphony installation at this link: <symphony-URL>/discovery/swagger-ui.html.

If a problem occurs, contact your sales or technical support representative.

Manage License Keys Using Configuration Properties or Environment Variables

This applies to: Visual Data Discovery

Add your license keys and installation id to zoomdata.properties. Format the variables as shown below:

zoomdata.license.key=<value>
zoomdata.installation.id=<value>

Important: License information provided via configuration properties or environment variables have a higher priority than keys stored in the database previously provided via API or user interface. If you attempt to change the keys using the API in an environment where licensing information from configuration properties or environment variables are in use, Symphonydata discovery returns a failure message. Update the license key in the configuration files instead.

Add a New License Key From the Main Menu

1. Select Licenses from the main menu. A Licenses work area for all modules opens.

2. Select License details from the Actions menu. A Licenses a work area specific to the module you selected, showing the licenses in your environment.

3. Select Add New to add a new license. An Add License work area opens.

4. Add the license information in one of the following ways:

   • Drag and drop the license file from your computer or networked location
   • Select Choose File to select a file from your computer or networked location
   • Copy and paste the license text into the field provided

5. Save your license. The license list is updated with the new entry.

6. Log out, then log back in to view the license update, and if applicable, the removal of the evaluation watermark.

View your licenses (Licenses work area)

1. Select Licenses from the main menu. A Licenses work area for all modules opens, showing license module name, status, expiration date, and days remaining in the current licensing period.

2. Use the filters to limit the licenses shown by selecting a module, or view all licenses by selecting All.

3. To see more information about a specific license, select License details from the Actions menu.

   A Licenses a work area specific to the licensed module opens, showing the licenses in your environment.

4. Take any actions needed for the licenses, or navigate away when you're done viewing the licenses.

Optionally, navigate to the Licensing work area of the Administration homepage to add or edit new licenses as needed.
