Histogram

This applies to: Managed Dashboards, Managed Reports

The Histogram function assigns numeric values to bins and returns the counts. This analyzes the numeric values by themselves, and can make it possible to visualize how a set of numeric values are distributed, see which are the most or least common, and look for patterns.

Note: You can also re-visualize Calculate Histogram to quickly generate a histogram chart. See Calculate Histogram.

Note: The histogram functions can only be used in a formula visualization.

The Histogram Range function can optionally be used instead when you want to specify the start and/or end of the range of values included in the result.

Syntax

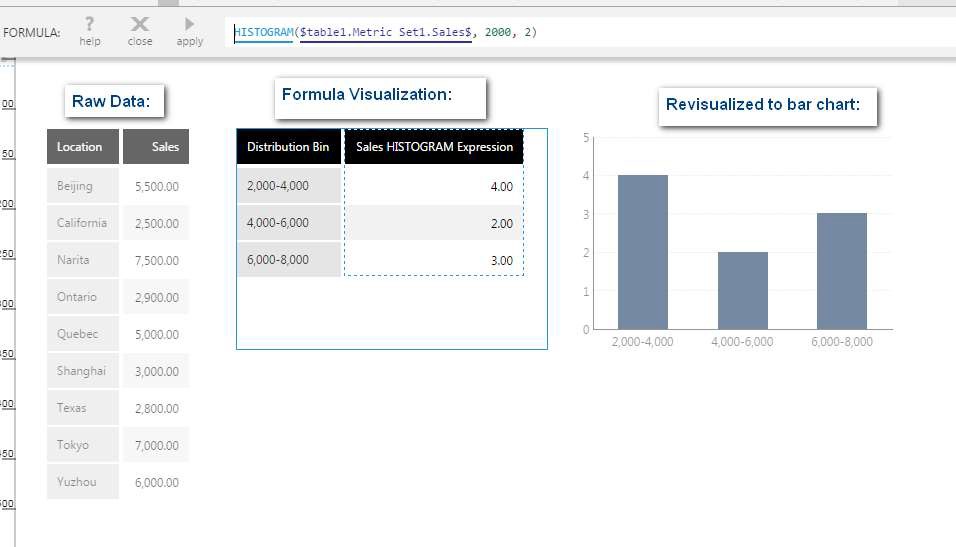

Histogram:

HISTOGRAM(d0,s0,s1,Alignments...)

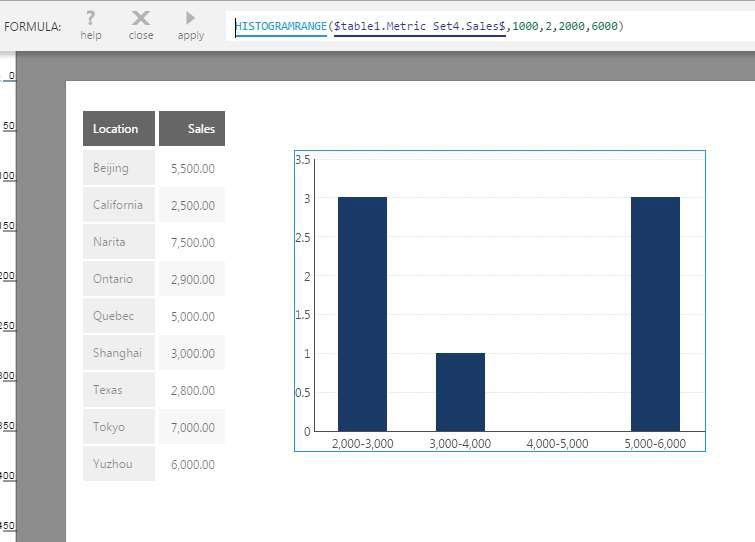

Histogram Range:

HISTOGRAMRANGE(d0,s0,s1,s2,s3,Alignments...)

Input

The Histogram function requires the following input:

• d0 - The set of data values for which the histogram is calculated.

Parameters

The Histogram functions use the following parameters:

• s0 - The size of the bins for the numeric values to be assigned to, optional. Enter 0 or null to calculate the bin size automatically.

• s1 - A number representing the type of captions to describe the ranges, optional.

  • 0: The default value is 0 (Auto)

  • 1: ">=0 & <10, >=10 & <20"

  • 2: "0-10, 10-20"

• s2 - (For Histogram Range) The value used to start the range of the first bin. Input values smaller than this will not be counted in the result.

• s3 - (For Histogram Range) The value used to end the range of the last bin. Input values greater or equal to this will not be counted in the result.

• Alignments... (One or More, Optional): Hierarchy placeholders to be used as the alignment axis, for grouping histogram results by the specified values rather than producing a single result.

Output

The histogram functions generate the following output:

• Histogram - The Histogram result set, containing only a Distribution Bin hierarchy and a count of the number of measure values from the input data within each bin
