Get the Selected Rows in a Table

This applies to: Managed Dashboards, Managed Reports

Learn how to get the selected row ordinals and the selected row hierarchy members in a table using script.

Script Library sample: Get selected table data

Get the Selected Row Ordinals

Create a new dashboard and add a table visualization to it with data.

For this example, we will enable the Allow Multiple Row Selection property of the table. Also add a button component and a label component.

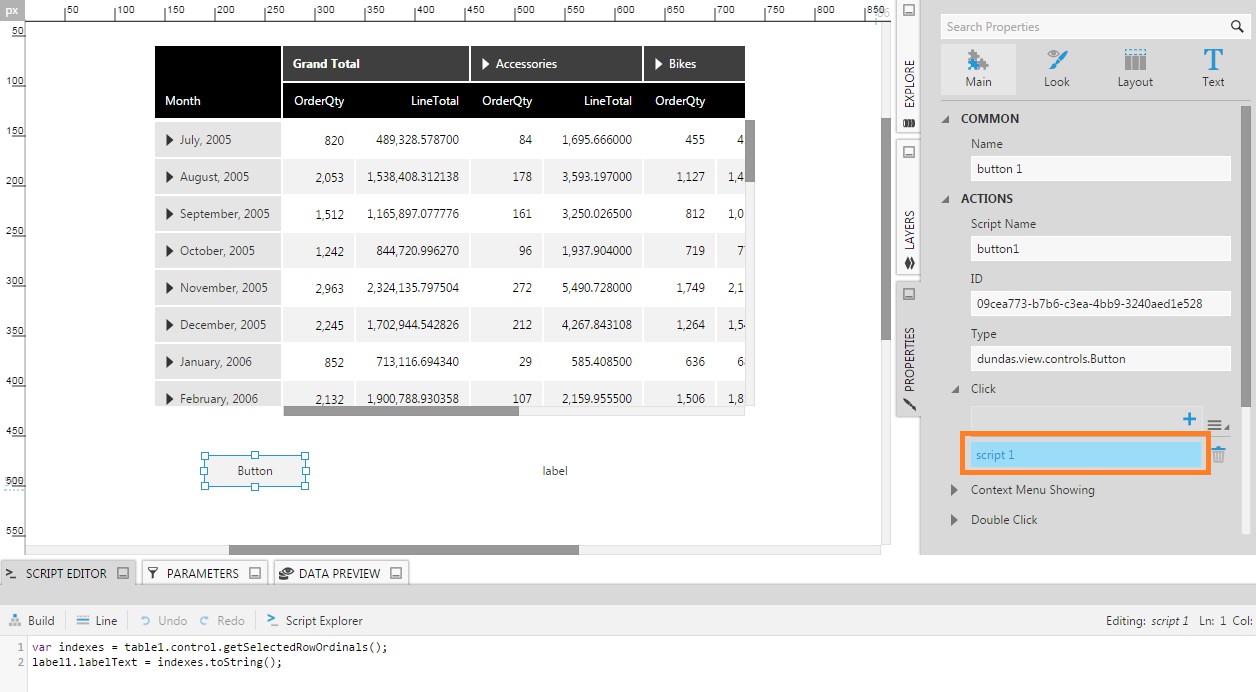

Add the following script on the Click event of the button.

var indexes = table1.control.getSelectedRowOrdinals();

label1.labelText = indexes.toString();

This script refers to the following API methods and properties:

• DataGrid.getSelectedRowOrdinals Method

• Label.labelText Property

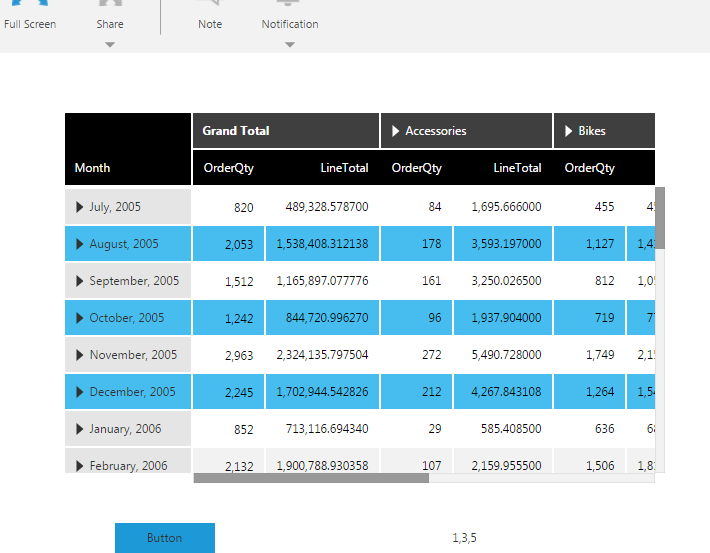

Switch to View mode and select one or more rows in the table. Click the button to see the selected row indexes/ordinals appear in the label.

Get the Selected Hierarchy Members

To get the list of hierarchy members of the selected rows in a row header, change the button click script to use the getSelectedRowHierarchyMembersmethod:

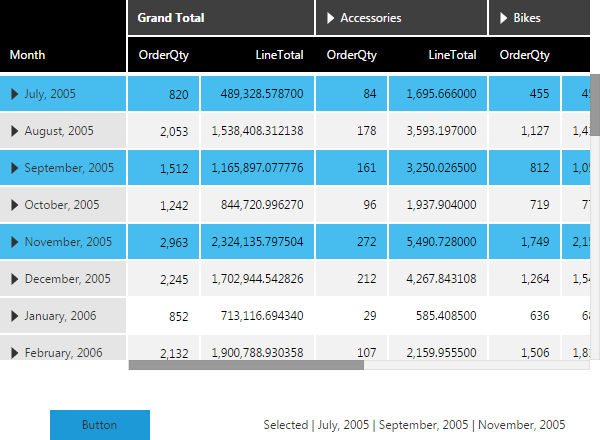

Switch to View mode and select one or more rows in the table. Click the button to see the selected hierarchy members appear in the label.

For more information, see:

• JavaScript API

• Script Library: Get selected table data

• Use the Script Editor

• Using a Table Visualization
