Implementing a Mobile Optimized Navigation Menu

This applies to: Managed Dashboards, Managed Reports

Many users may want to be able to view a dashboard on their phone or on a tablet in portrait mode. This is possible for any dashboard, or you might create a mobile-optimized version, but you can also design a single

version of a dashboard that specially adapts to fit its content onto the current screen size using Responsive resize mode. This mode automatically re-organizes the content as needed so that it fills the given screen real estate but scrolls to additional content that would not fit at the same time.

For the smallest screen sizes, you may need to further minimize the amount of space taken up for navigation or other options on your dashboard. This article explains how to add a hamburger menu (also known as the menu button or navigation drawer) for those devices to navigate between dashboards.

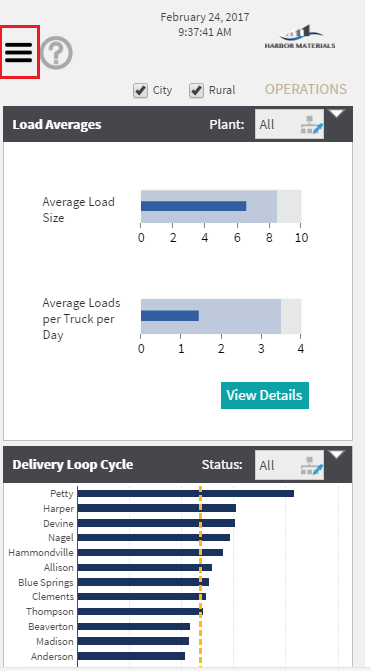

Mobile view of the above dashboard with hamburger menu button

Understanding the Browser Window Resizing Event

To determine when to show the full-size navigation buttons and when to show the hamburger menu button, it is important to understand when the dashboard window resizing event is fired. When the dashboard loads for the first time, Symphony detects the browser’s window size and adjusts the dashboard canvas to fit. For this example, it is required to detect the browser window size when loading the dashboard and hide or show the navigation buttons accordingly.

When using smartphones or tablets, users may rotate the device to change the display orientation between portrait and landscape mode. This is another case to consider for hiding or showing different navigation buttons, and if you decide to handle it, the dashboard's Resize actions can be used in a similar way as done for the dashboard's Ready actions below.

Example Dashboard

Consider a simple dashboard based on the template grid example.

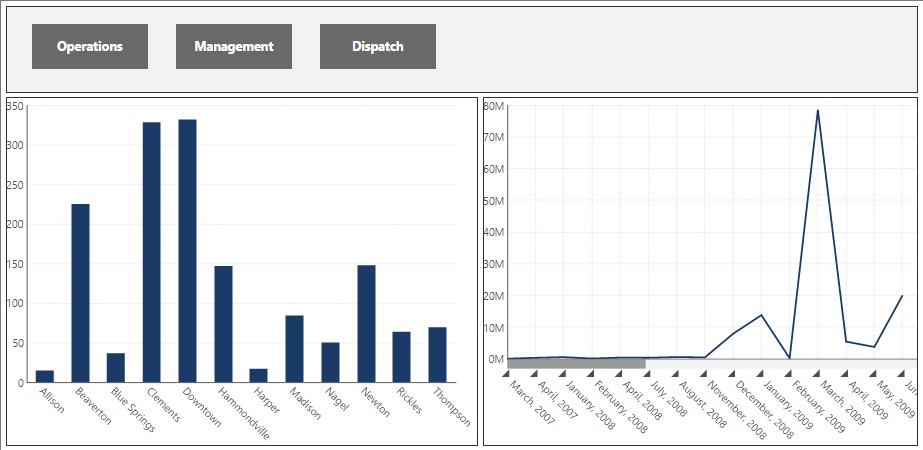

Sample dashboard with button navigation

For the above dashboard, the default settings are given below:

Resize Mode: Responsive
Width: 1024
Height: 500

The dashboard also has two layers:

MainLayer, which contains two charts.
NavigationLayer, which contains three navigation buttons (Operations, Management, and Dispatch).

Note: The NavigationLayer buttons are inside a single cell and are not attached to any cell within the template grid, while the MainLayer charts are attached to different cells.

When the dashboard is viewed on a large monitor, it looks fine. However, when the dashboard is viewed on a smaller screen, the space is too small to fit them and their labels in one row.

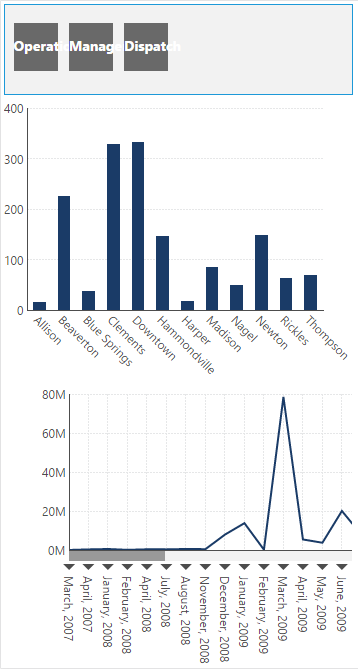

Sample dashboard shown on a small screen

Adding the Hamburger Menu

To replace the buttons above with a collapsible menu, add a new layer (HamburgerLayer) in the Layers window and add an Image component to that layer that displays the icon image.

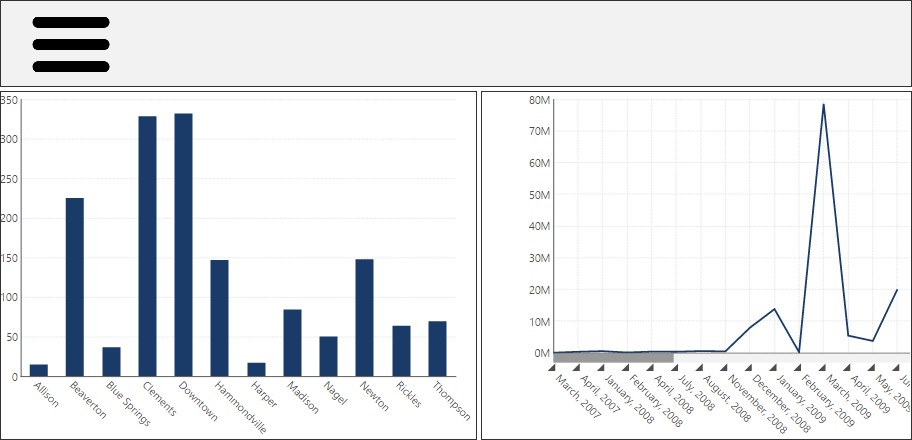

Sample dashboard with HamburgerLayer

Next, add another layer (DropdownLayer) and add three buttons to that layer, which will make up the menu.

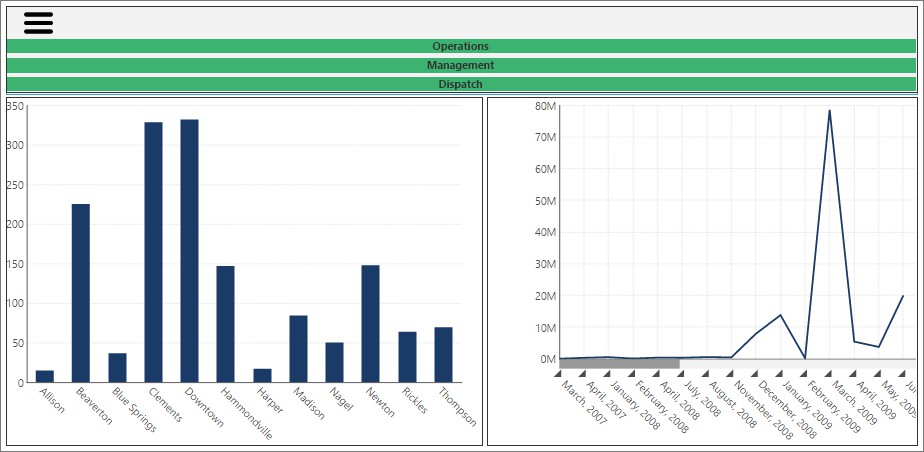

Sample dashboard with drop-downLayer

Adding the Scripts

For this example, we will show the hamburger menu if the browser window is less than 1020 pixels in width. In this case, we want to show the HamburgerLayer and hide the NavigationLayer; otherwise, we want to show the NavigationLayer and hide the HamburgerLayer.

To achieve this, use the following script under the Ready action of the dashboard:

// Get the current window width
var windowWidth = $(window).width();
// Get the canvas service
var canvasService = this.getService("CanvasService");
// Get the navigation layer
var navigationLayer = canvasService.getLayersByFriendlyName("NavigationLayer")[0];
// Get the hamburger layer
var hamburgerLayer = canvasService.getLayersByFriendlyName("HamburgerLayer")[0];

// Check the window width and show/hide appropriate layers
if (windowWidth < 1020){
	if (hamburgerLayer.hidden) {
		canvasService.showLayers([hamburgerLayer]);
		canvasService.hideLayers([navigationLayer]);
	}
} else {
	if (navigationLayer.hidden) {
		canvasService.showLayers([navigationLayer]);
		canvasService.hideLayers([hamburgerLayer]);
	}
}

While the dashboard is viewed on a smaller screen, you want to show a drop-down menu if the user clicks/taps on the hamburger menu button. The idea is to show the DropdownLayer if it is hidden, and vice versa. To achieve this, add the following script under the Click action of the Hamburger menu button image.

// Get the canvas service
var canvasService = this.getService("CanvasService");
var dropdownLayer = canvasService.getLayersByFriendlyName("DropdownLayer")[0];

if (dropdownLayer.hidden) {
	canvasService.showLayers([dropdownLayer]);
}
else {
	canvasService.hideLayers([dropdownLayer]);
}

Testing the Hamburger Menu Button

If you open the dashboard on a small screen device, it will detect the browser window size when the dashboard is at the Ready state and will show the Hamburger menu button on the top left corner, as per the design.

If you tap the Hamburger menu button, a drop-down menu with three buttons will appear underneath the Hamburger button.

For more information, see:

JavaScript API
Script Library: Show or hide a layer
Script Library: Animated sliding content layer
Samples: Material Operations Dashboard
Writing Scripts Using Browser Developer Tools
